PDS (PRE-DELIVERY SERVICE) INFORMATION - GR COROLLA

Models: GR Corolla (GZEA14R)

Update Details

Introduction

This Service Bulletin provides information regarding the following PDS items for GR Corolla (GZEA14R).

Contents

• D/C Cut Fuse Installation
• Customise with ACC Customise Function
• Removal of Front & Rear Emergency Towing Eyelets and Installation of Covers
• Removal of Front Coil Spring Spacers

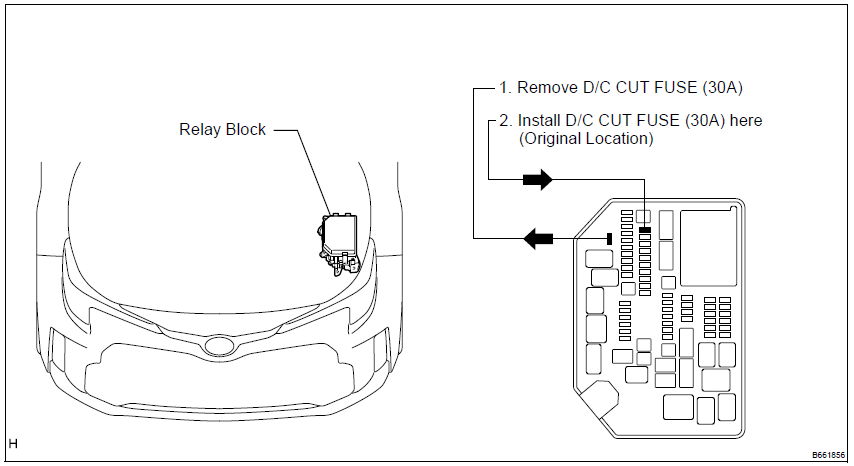

D/C Cut Fuse Installation

Installation
The D/C CUT FUSE (30A) has been removed at the assembly plant to reduce parasitic current draw in transit and storage.
The removed D/C CUT FUSE (30A) is stored in the blank space of the relay block in the engine compartment.
The D/C CUT FUSE (30A) must be reinstalled to the original location during PDS (Pre-Delivery Service) at the Dealership.

Customise with ACC Customise Function

Customisation
The pre-startup function is a function that detects when a user enters the vehicle and energizes (+BA)
the audio head unit so that multimedia system can quickly be used.
The pre-startup function is set to off at the factory to reduce parasitic current draw in transit and storage.
In order to set the pre-startup function to on, it is necessary to set the ACC customisation function to off.
1. Customising with the navigation display.
(a) Turn the engine switch (power switch) to the "ON" position ("ON" mode).
(b) Enter the following menus: Settings / Vehicle customisation / Utility / ACC customize and select "OFF"

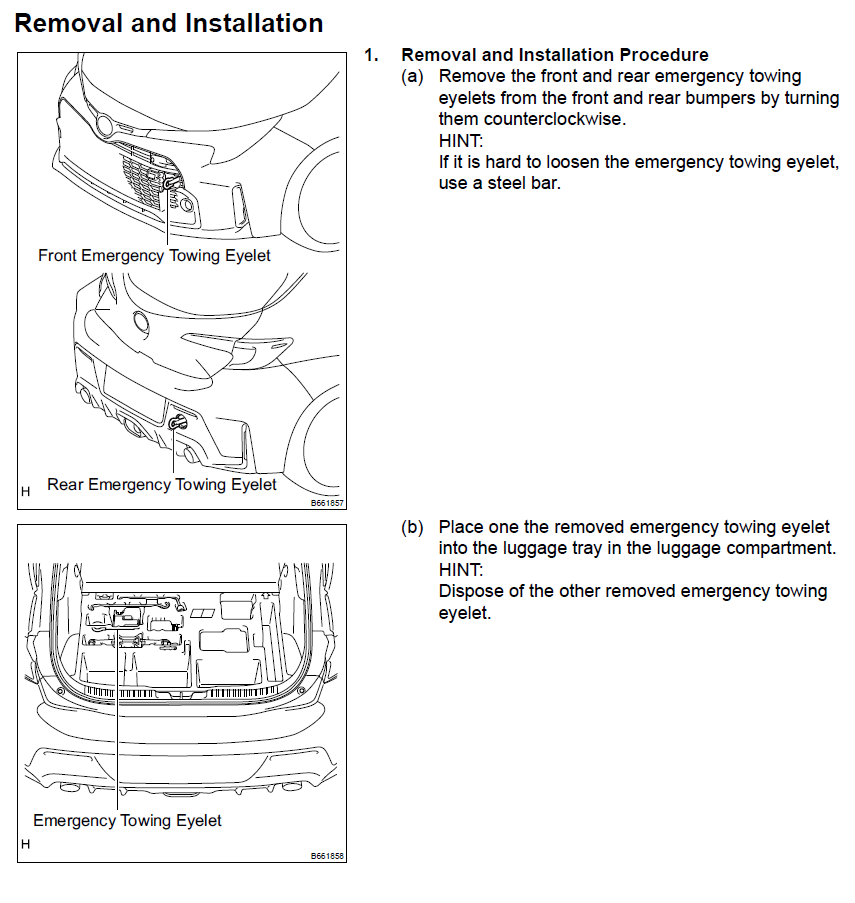

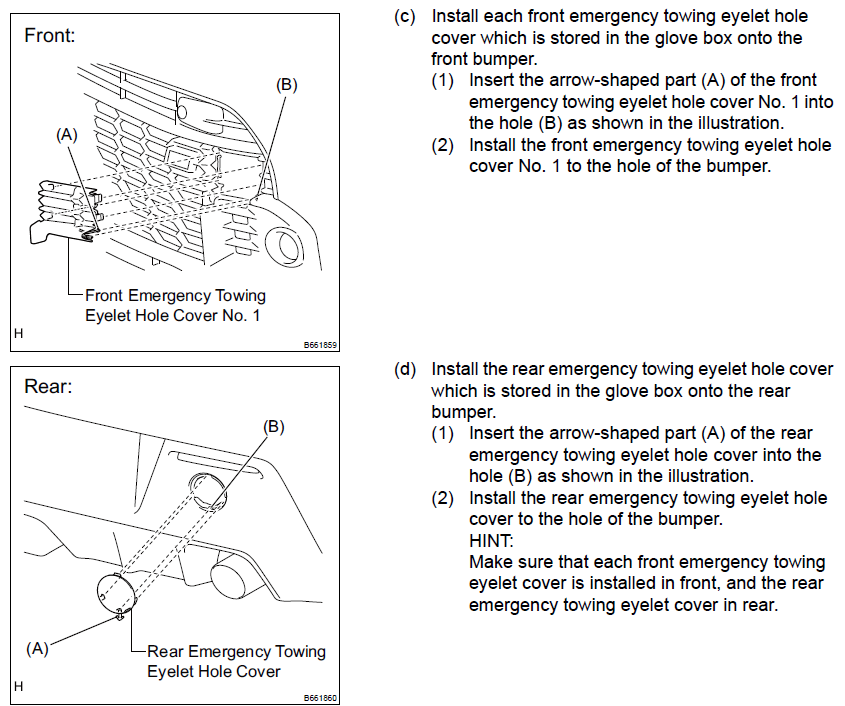

Removal of Front & Rear Emergency Towing Eyelets and Installation of Covers

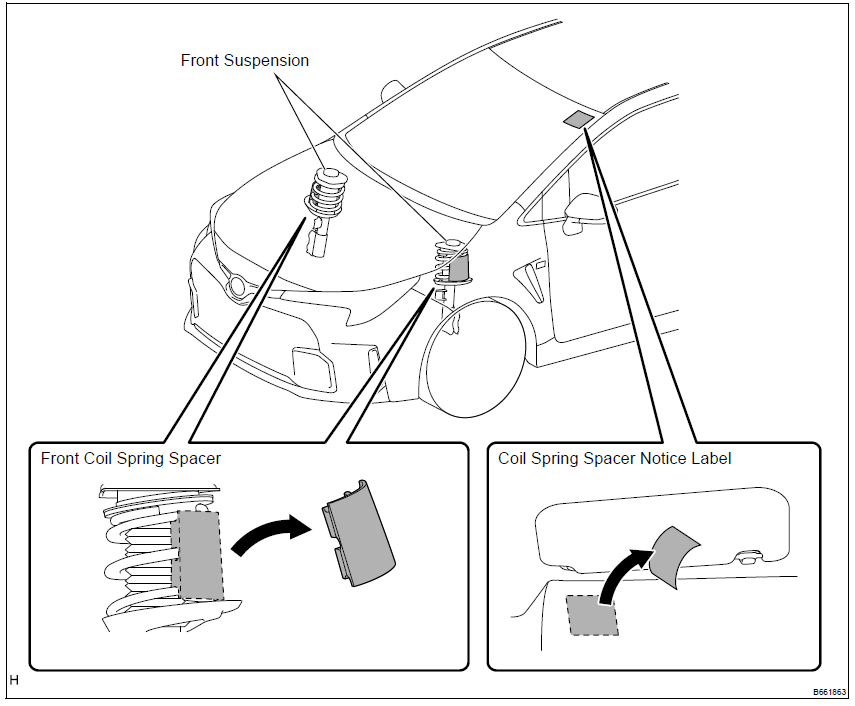

Removal of Front Coil Spring Spacers

The front coil spring spacers are installed on the front coil springs to prevent the underside of the front bumper from hitting and damaging in transit.
Please remove the front coil spring spacers according to the following method during PDS (Pre-delivery Service) in dealership.
1. Removal Procedure
(a) Put the vehicle on hoist to extend the front suspension.
(b) Remove the front coil spring spacer from the front coil springs.
(c) Peel off the coil spring spacer notice label from the front window glass.

Yours faithfully

Toyota Motor Corporation Australia Limited
